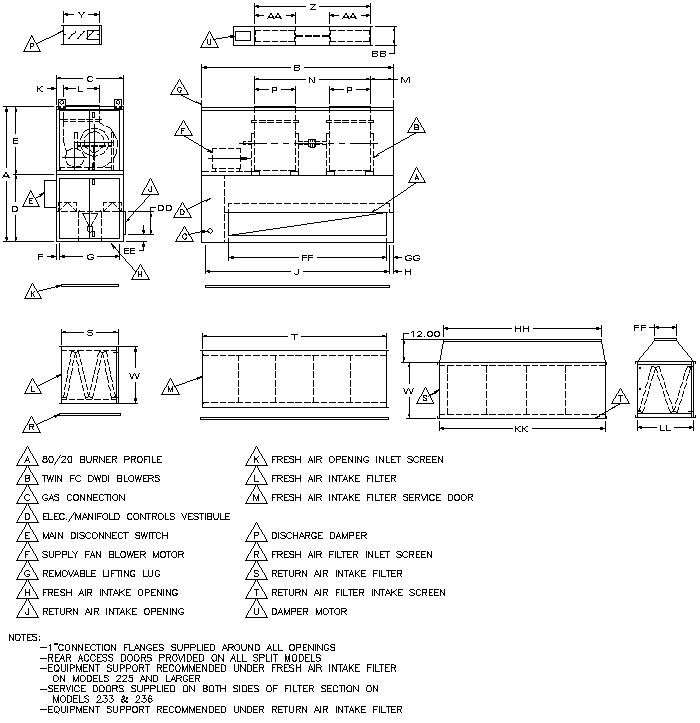

CAV-M V1 Vertical Unit with Top Discharge

Casing A B C D E F G H J K L M N
222 100 146 50 50 50 1.25 47.38 1.25 143.38 8.75 27.25 14.75 77.00
225 100 146 50 50 50 1.25 47.38 1.25 143.38 3.5 31.5 14.75 88.00
227 110 156 60 50 60 1.75 56.5 1.75 152.5 9 34.5 16.25 96
230 110 156 60 50 60 1.75 56.5 1.75 152.5 4.5 37 16.25 104
233 128 191 70 58 70 1.75 66.5 1.75 187.5 10.5 43.25 19.75 116
236 128 191 70 58 70 1.75 66.5 1.75 187.5 10.5 43.25 19.75 122
Casing P S T W X Y Z AA BB DD EE
222 27.00 43.25 142.50 32 - 27.75 77.25 27.25 10 13.75 3.75
225 31.50 43.25 142.50 32 - 31.75 88.25 31.75 10 13.75 3.75
227 34.5 53.25 151.5 32 - 34.75 96.25 34.75 10 15.75 1.75
230 37 53.25 151.5 32 - 37.25 104.25 37.25 10 15.75 1.75
233 39.81 63.63 186.13 32 - 43.50 116.25 40.06 10 21.25 5.75
236 42.81 63.63 186.13 32 - 43.50 122.25 43.06 10 21.25 5.75
Casing FF GG HH JJ KK LL FA Filter Capacity RA Filter Capacity
222 123.75 1 14 124 142.5 43.25 (16) 20 x 25 & (16) 16 x 25 (16) 20 x 25 & (16) 16 x 25
225 123.75 1 14 124 142.5 43.25 (16) 20 x 25 & (16) 16 x 25 (16) 20 x 25 & (16) 16 x 25
227 133.5 1.75 15.75 133.75 151.5 53.25 (30) 20 x 25 & (10) 16 x 25 (30) 20 x 25 & (10) 16 x 25
230 133.5 1.75 15.75 133.75 151.5 53.25 (30) 20 x 25 & (10) 16 x 25 (30) 20 x 25 & (10) 16 x 25
233 157.75 6.68 21.5 158 186.25 65.75 (30) 20 x 25 & (20) 16 x 25 (30) 20 x 25 & (20) 16 x 25
236 157.75 6.68 21.5 158 186.25 65.75 (30) 20 x 25 & (20) 16 x 25 (30) 20 x 25 & (20) 16 x 25
